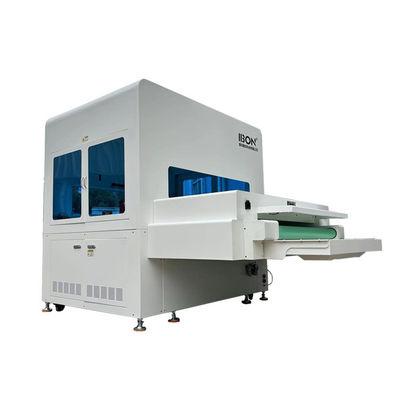

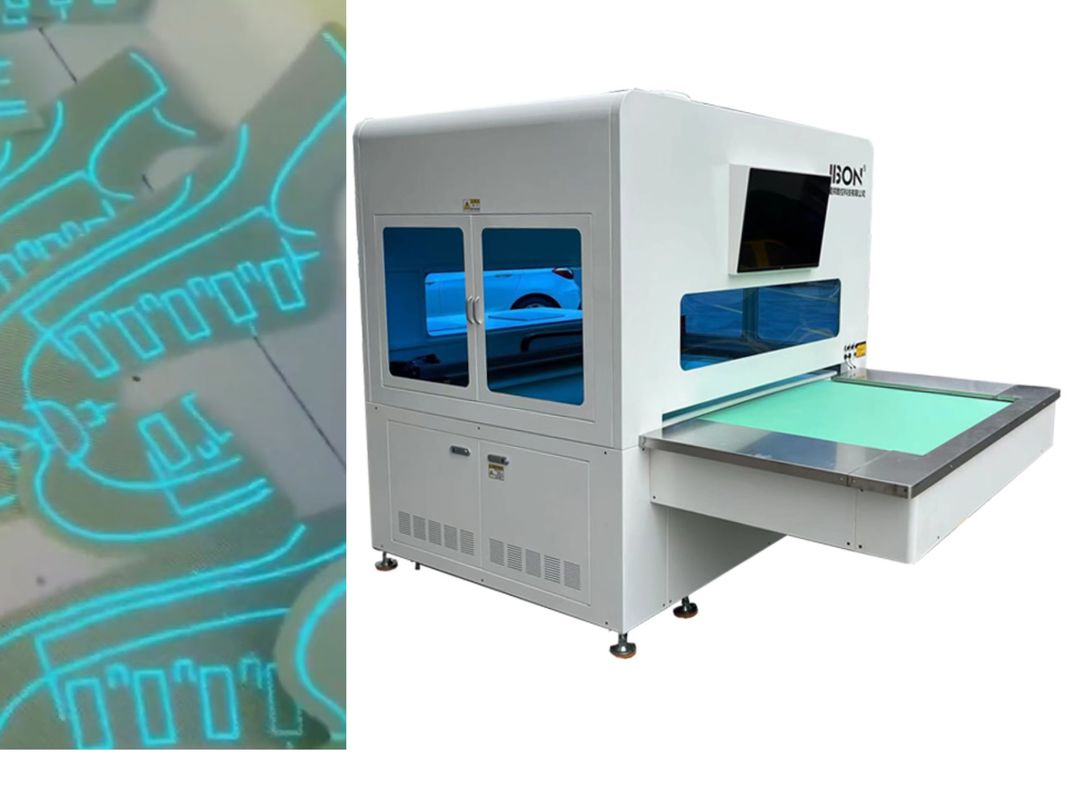

220V Automatic Line Drawing Machine with 1200 x 900mm Working Area for Shoe Upper Marking

220V Automatic Line Drawing Machine with 1200 x 900mm Working Area for Shoe Upper Marking

Brand Name:	IBON
Model Number:	IB1209
MOQ:	1
Payment Terms:	T/T,Western Union
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Product Name:

Line Drawing Machine

Style Ways:

Printing Line For Shoe Upper

Working Area:

1200 X 900mm

Ink Type:

Flurescen Ink

Power:

220-24v

Applicable:

Shoe Upper, Vamp, Cloth

Control:

Computer

Packaging Details:

Wooden case

Highlight:

220V Line Drawing Machine

Line Drawing Machine Digital

Digital Inkjet Printing Machine Automatic

Product Description

220V Automatic Line Drawing Machine | Digital Inkjet Printing for Leather & Shoe Uppers

Automated Digital Inkjet Line Drawing System

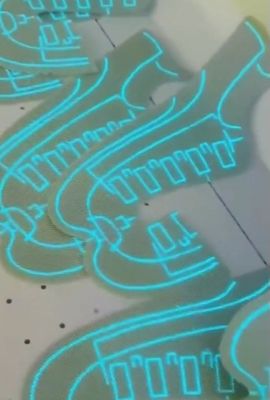

Our 220V automatic digital inkjet line drawing machine revolutionizes shoe upper marking by eliminating manual cardboard templates. This advanced system delivers exceptional speed and precision across various materials and patterns, significantly enhancing footwear manufacturing efficiency.

Key Advantages

Innovative technology ensuring speed and high accuracy on diverse materials and patterns
Simultaneous processing of multiple patterns
Automatic material identification with arbitrary positioning capability
Enhanced productivity through dual movement axis with 8 cartridges (4+4 configuration)
Equivalent output to more than 6 manual workers operating simultaneously
Versatile line type execution for various marking requirements

Technical Specifications

Product Name	Smart Shoe Line Marking Machine
Working Area	1200mm * 900mm
Ink Type	Fluorescent Ink
File Format	PLT/DXF
Power Supply	220-24V
Applications	Shoe Upper, Vamp, Cloth
Control System	Computer Controlled

Performance Features

High Precision: Achieves millimeter-level or superior marking accuracy ensuring precise lines on all shoe upper components
High Efficiency: Automated operation enables rapid marking completion, significantly boosting production efficiency

After Sales Service & Support

12-month comprehensive warranty for the entire machine with lifetime technical support
Complete training package including English video tutorials and user manuals for installation, operation, maintenance, and troubleshooting
Comprehensive technical guidance via email, telephone, and online video support for any operational challenges
On-site factory training with professional instruction, assembled equipment, tools, testing facilities, and accommodation provided
Optional door-to-door service available upon request
