IB1290 Automatic smart vamp marking line machine \ Double Head Inkjet Line Drawing Machine for Shoe Upper

Shoe Upper Line Drawing Machine Vamp Marking Machine Handbag Inkjet Digital Printing Machine

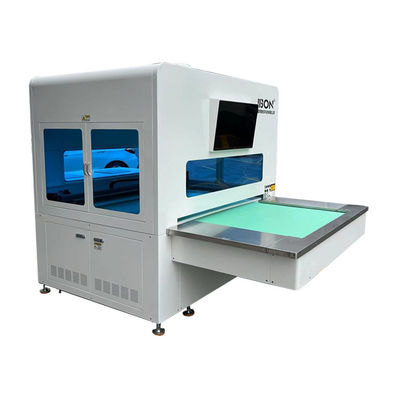

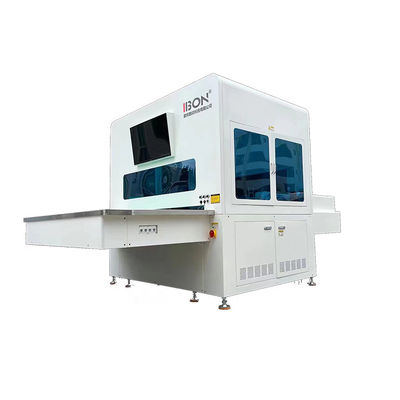

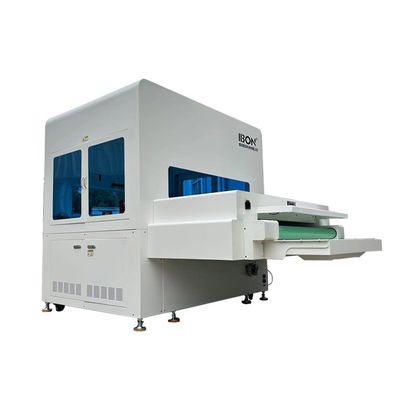

IBON 1290 automatic inkjet machine is specially designed for precise stitching line drawing of shoe materials. The equipment can perform automatic recognition of the type of cut pieces and precise positioning. It is high-speed, high-precision and assembly line processing flow. The whole machine is automatic, intelligent, and easy to learn.

In the shoe industry, precise drawing of the stitching line of the shoe patterns is an indispensable process Traditional manual drawing not only requires a lot of labor, its quality also depends entirely on the proficiency of the workers.

IB1209 is specially designed for precise stitching line drawing of shoe materials. The equipment can perform automatic recognition of the type of cut pieces and precise positioning. It is high-speed, high-precision and assembly line processing flow. The whole machine is automatic, intelligent, and easy to learn.

The simplification of processes and the replacement of labor by machines are the way out for factories in the future. Therefore, launched a fully automatic inkjet stitching line drawing machine to help shoe factories save labor, improve efficiency, and save costs.

^{After Sales Service :}

Pre-sales service
* In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products.
* Every machine must be tested before delivery, all of them are absolutely qualified.

After-sales service
* User manual and Installation video will be sent to you together with machine.
* Provide online technical support, and, the engineer can be sent to your local to install or adjust if necessary.
* 24 months guarantee of the whole machine.
* 12 months warranty for Main parts(excluding the consumables and belongs to the user irregularities operating), free of charge if there is any quality problem during the warranty period.
* Provide the consumable parts at an agency price when you need replacement in future.

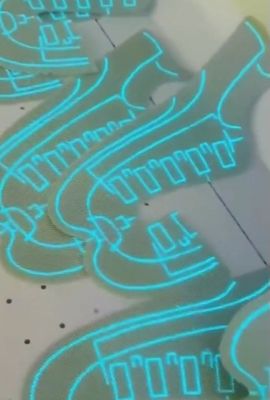

Automatic smart vamp marking line machine is an shoe upper line drawing machine mainly used to marking line for sewing track in shoes factory. Actually, marking line on vamp is second craft of shoes making after cutting by laser cutting machine or vibrating knife. The traditional line drawing process is made by hand with high temperatures disappearing refill and manual screening printing. This is an automatic machine replace manual process to make shoes. It is 5-8 times faster than manual and the accuracy is higher 50% than it.

Machine Features

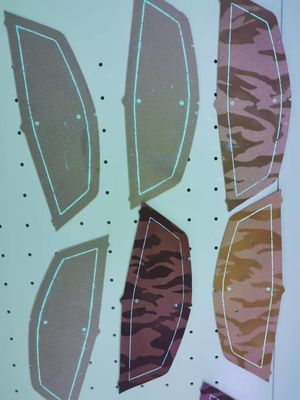

✔ An automatic machine for drawing lines on cut pieces of shoes
✔ Precise and stable transmission and high-speed servo drive
✔ Full automation of cut pieces feeding, screen pressing, line drawing and collection
✔ High-strength press mesh to avoid warping, shifting and deformation of the cut pieces
✔ Intelligent recognition of cut pieces by HD camera, different cut pieces can be mixed and fed

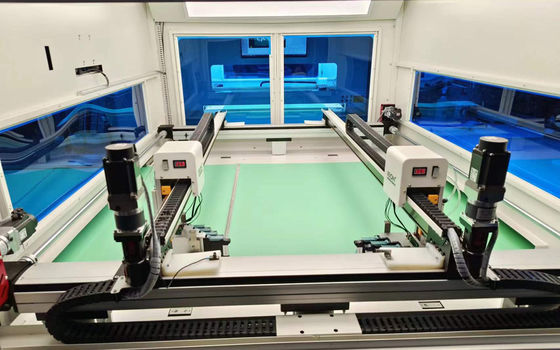

✔ Servo motion module with dual inkjet heads for high speed and efficiency
✔ High temperature disappearing ink, water disappearing ink, fluorescent ink, etc. are available on request
✔ Collecting platform comes standard with drying system to speed up ink drying
✔ Applicable for various shoe materials such as leather, PU, microfiber, synthetic leather, cloth, knitted fabric, mesh fabric, etc.
