Place of Origin:
DongGuang,China
Brand Name:
IBON
Model Number:
IB1509
Video
Video

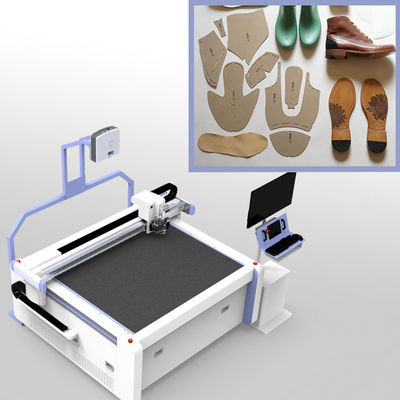

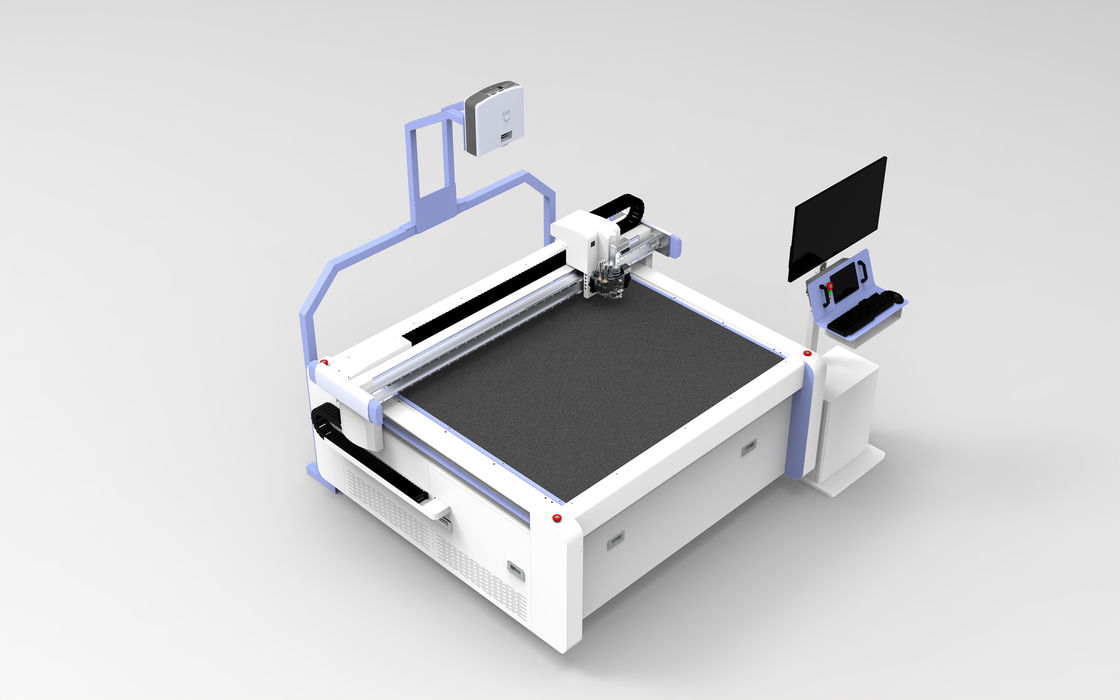

IBON cutting machine is based on a modular design concept that is unique in the market-flexible and easily expandedable, configure your digital cuttting systems according to your individual production requirements and find the right cutting solution for each of y0our applications, Invest in powerful and uture proof cutting technology.
Deliver neat and accuarte digital cutting machine for flexible materials such as fabrics,leather,carpets, foam boards, etc.
cutting system is a high speed (single layer/few layers) material cutting system, which is widely applied in automobile interior, advertisement, garment, furniture, and composite materials. It can be precisely used for full cutting, half cutting, engraving, creasing, grooving. This Cutting system provides best choice for many different industries with high efficiency and flexibility.
| Model | IB-ST-1509 |
| Effective Work Size | 1600mm*1600mm |
| Cutting Speed | 1-1200mm/s |
| Cutting Thickness | 0.1-10mm |
| Processing Material |
Genuine leather, synthetic leather, PVC leather,insole board, TPU, footware, cow leather,sheep leather,pigskin leather,crocodile leather, etc. |
| Hold Method | Vacuum absorption |
| Machine Language | HP-GL / GP-GL |
| Interface | Ethernet port |
| Accuracy | Less than 0.1mm |
| Available Tools | Vibration knife, pen and holes punching |
| Vibration Knife | Electronic, driven by Swiss high frequency motor (18000rotate/min) |
| Cutting Features | Possible to finish full-cut, kiss-cut and dotted-line cut interactively |
| Vacuum Power | 9 KW, 380V-50Hz/220V-60Hz |
Features:
1. Dual working arms, cutting at a same time independently. Cutting quality is accurate and smooth.
2. The auto nesting effect is time, labor and materials saving, and visible on the leather through the projector system.
3.Widely used in footwear industry for various materials: knitting materials, fabric, PU, PVC mesh fabric.
4.Vacuum partition follow - up adsorption system, can achieve continuous cutting.
Auto vacuum adsorption system
5.Meet the production target of multi-layer cutting, various order and pattern and customized materials.
6.With a gantry form, the machine is stable and shock-absorbing, which further ensures the accuracy and durability.
7.Operation mode: HD projector positioning system + material-saving intelligent nesting software + 8-layer materials auto sending device + dual heads simultaneous cutting system.
Certificate
1. Can it be used for the fabric industry?
Yes, our digital cutting machines can be widely used in fabric, cloth, pu leather and other flexible material industry.
2. What's the mas thickness of ur pneumatic cutting tool can cut?
Our digital cutting table can be installed with the pneumatic cutting tool, and this tool can cut up to 70 mm;
3. The work you wanna handle with this digital cutting machine(Engraving ?Cutting ?Or others?)
The digital cutting machines can do the job of cutting, creasing and marking.
4. Do you have the manual of fabric cutting machines?
Yes,we can provide manual,CD software and video to help you operate the machine expertly.
5. If we do not know how to use the cnc cutting machine,can you teach us?
Yes ,of course. We can offer you free training, and engineers available to service machinery training overseas if you would like to offer them business expenditure.
6.How about your guarantee period for the digital cutting table?
Twelve months for the whole machine.
