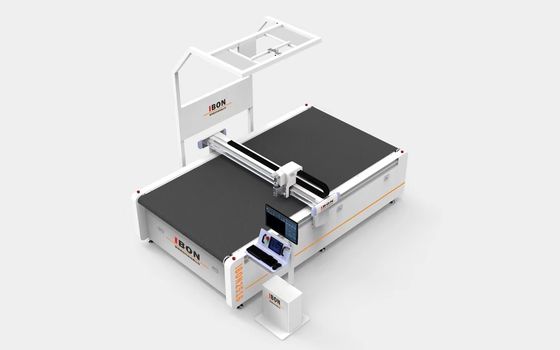

Customizable Electric Knife CNC Oscillating Knife Rubber Cutting Machine with Customization Option

Customizable Electric Knife CNC Oscillating Knife Rubber Cutting Machine with Customization Option

Brand Name:	IBON
Model Number:	IB1625 with Camara
MOQ:	1
Payment Terms:	,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

DongGuan, China

Product Name:

Gasket Cutting Machine

Customization::

Available

After-sales Service::

Three Year Warranty

Warranty::

Lifetime Free Upgrade Lifelong Free Service

Cutting Materials::

Gasket,PVC,EPE,Rubber,Foam,Sponge,Carbon Fiber,Composite Material.,etc.

Type:

Oscillate Knife

Packaging Details:

Wooden Case

Highlight:

CNC Oscillating Knife Gasket Cutting Machine

Customizable Electric Knife Gasket Cutting Machine

Rubber Gasket Cutting Machine

Product Description

2024hot Sale CNC High Precision Rubber Oscillating Knife Cutting Machine

Basic Info.

Model NO.

IB-1625

Certification

CE, ISO 9001:2000, ISO 9001:2008

Condition

New

Control

Automatic

Application

Paper, Plastic, Leather, Fabric

Power Source

Electric

Layout

Horizontal

Cutting Thickness

0.1-30mm(Depend on Material)

Mechanical Precisio

<0.1mm

Power Supply

110V / 220V / 380V 50Hz / 60Hz

Supported Software

Coreldraw, Autocad

Work Plate

2500mm*1600mm

Machine Size

Customized

Cutting Speed

0-1200mm/S

Transmission Interface

Cable Transmission

Supported Format

Dxf, Plt

Fan Power

9kw

Material Fixed Mode

VAC-Sorb

Driving Mode

Racking Drive / Belt Drive

Transport Package

Packed in Wooden Cases

Specification

IB-1625

Trademark

IBON

Origin

DongGuan China

HS Code

8453100000

Production Capacity

100 Sets / Month

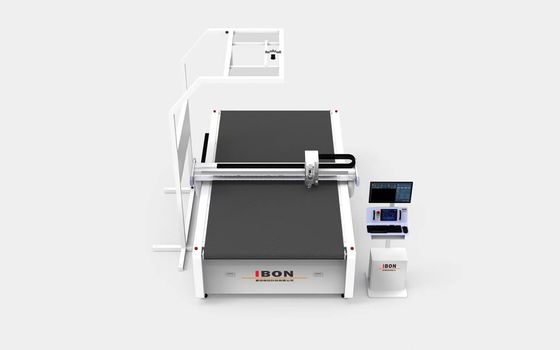

Customizable Electric Knife CNC Oscillating Knife Rubber Cutting Machine with Customization Option 0

Features:

CNC Oscillating Knife leather, gasket,fabric, rubber, sponge, foam Cutting Machine

1. Adopt imported PMI rack & square linear guide, Panasonic servo motor & drive ensure high accuracy, fast cutting speed and stable working performance;

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4.IBON digital cutting machine was designed easy to install, set-up and operate;

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;

6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;

7. Multi-functional cutting heads can meet different industries' requirements.

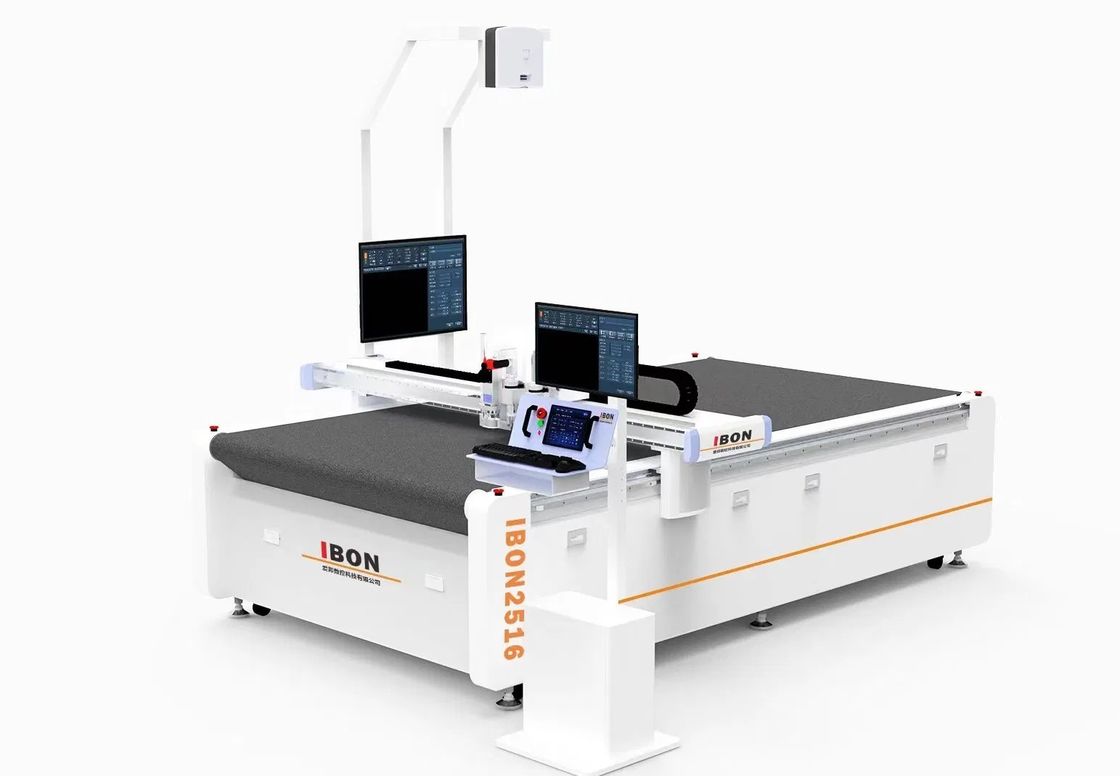

Customizable Electric Knife CNC Oscillating Knife Rubber Cutting Machine with Customization Option 1

After Sevice

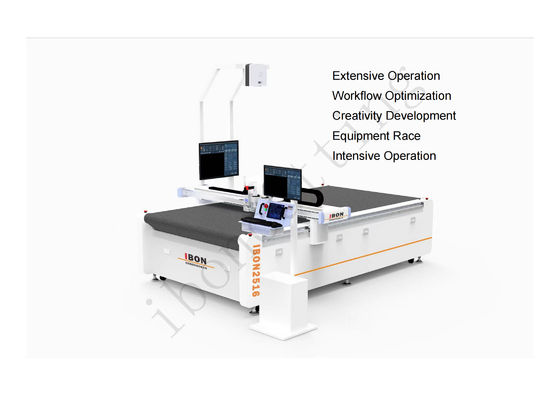

Customizable Electric Knife CNC Oscillating Knife Rubber Cutting Machine with Customization Option 2

Model	1625/1630/1830/2030/2125, can be customized.
Working area	16002500mm /16003000mm/18003000mm/20003000mm/2000*2500mm
Rated power	7-11KW
Fixed mode	Flat table /auto feeding table optional , table structure: whole welding process
Multifunctional heads optonal	Vibration knife (oscillatory knife)
	Circular knife (round knife / rotary knife)
	Oblique knife (V-cut)
	Marking pen
	Punching roller (round punching/v-punching/optional)
	Milling knife
	Drag knife
	Pneumatic knife
	Projector and camera optional
Safety device	Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable.
Material feeding type	Auto feeding or manual feeding
Material fixed type	Vac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kw
Translational velocity	800-1500mm/s
Cutting speed	Max. 1500mm/s (according to different cutting materials)
Cutting thickess	≤60mm (according to different cutting materials)
Cutting material	Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc.
Repated accuracy	≤0.1mm
Cutting type	Mechanical vibration physical cutting
Transmission / driving system	Motor brand Panasonic, YASKAWA, Fuji, Delta
Transmission type / Guide rail	Digital servo motor, linear guide, synchronous belt, rack/spline, ball screw
Instruction system	HP-GL compatible format
Control system	LCD touch screem ( custom made)
Voltage	110V/220V / 380V±10%; 50HZ, 60HZ
Other configuration	Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump

Packaging Shipping

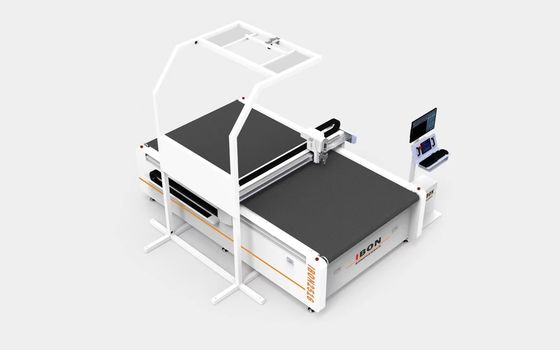

Customizable Electric Knife CNC Oscillating Knife Rubber Cutting Machine with Customization Option 3
