Double Head Inkjet Line Drawing Machine , Shoe Marking Machine for Shoe Upper / Vamp

Welcome to our automatic layout optimization system!

First, we import the pattern files that require line drawing. The system automatically recognizes and matches the shoe upper contours, ensuring precise alignment.

Once imported, the system automatically generates separate pattern pieces for all shoe sizes. Here, we can see the list: size 35, size 36, size 37... and so on.

On the right, we have a selection panel displaying all imported pattern pieces. You can easily select any size to view its corresponding cut pieces.

Now, let’s proceed with the operation! We select multiple sizes—35, 36, 37, and 38—to perform batch line drawing. You can also select just one size, such as size 35, or freely switch between sizes to adjust the drawing as needed.

With a simple and intuitive interface, you can easily complete the process with just a few clicks!

✅ Automatic Layout Optimization
✅ Automatic Size Recognition
✅ Integrated Auto Layout

Efficient, accurate, and easy to use—streamlining your workflow like never before!

^{Machine Features

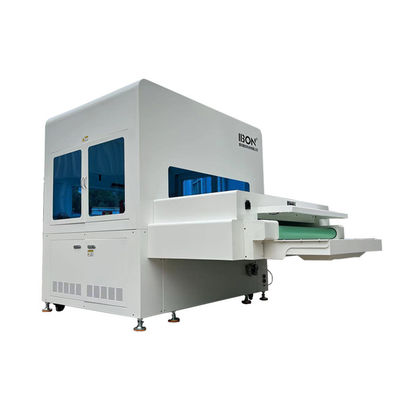

Fully automatic assembly line operation, only need a worker to load the material (automatic loading device is optional).

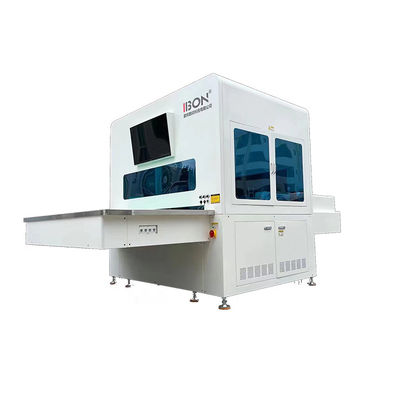

The whole machine consists of three stations: loading area, inkjet processing area, and drying and unloading area. The effective working range of each station is 1200mmx900mm.
The inkjet processing area is designed with a grid-shaped pneumatic press screen, which can press and flatten the cut pieces, and the camera recognition software has a grid elimination function.

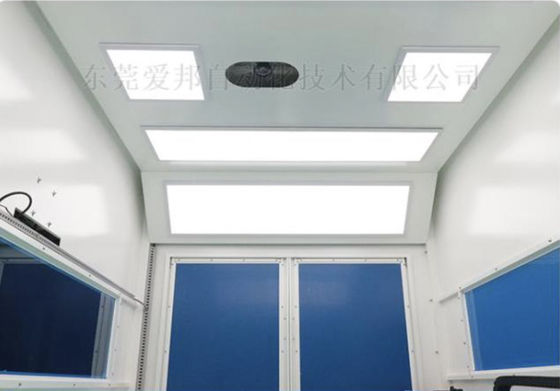

Equipped with high-precision industrial cameras, intelligent recognition of shoe uppers. Different types of uppers can be mixed and loaded, with software automatic recognition and precise positioning.

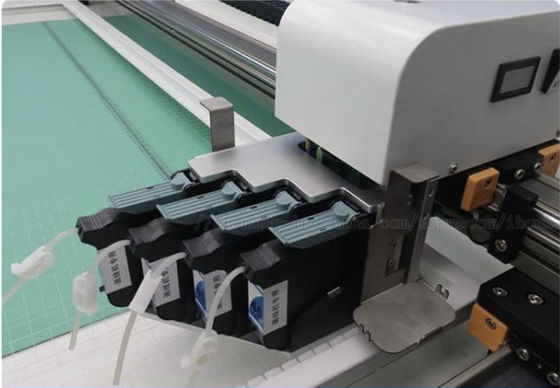

The inkjet head adopts X-Y gantry motion mode. Single head and double head are available. Imported servo driven module, fast speed, high precision and low failure rate.
High-frequency and high-speed inkjet head, with very slim spraying dots. Applicable to all kinds of disappearing ink and fluorescent ink.
Pneumatic inkjet head with pneumatic lifting function.
Collecting platform comes standard with drying system.
Application: Suitable for inkjet marking of various shoe upper materials.}
