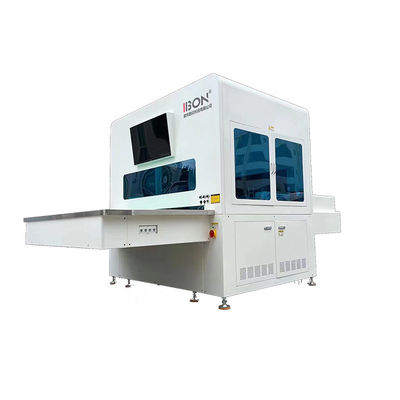

High-Speed Shoe Marking Machine with 1200 x 900mm Working Area and 220-24v Power for Shoe Upper and Vamp

Name: High-Speed Shoe Marking Machine with 1200 x 900mm Working Area and 220-24v Power for Shoe Upper and Vamp
Brand: IBON Technology Co., Ltd.
SKU: IB1209
Price: 144,999.00 USD
Availability: InStock

Brand Name:	IBON
Model Number:	IB1209
MOQ:	1
Payment Terms:	T/T,Western Union
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

DongGuan

Certification:

Product Name:

Digital Leather Printing Machine

Style Ways:

Printing Line For Shoe Upper

Working Area:

1200 X 900mm

Ink Type:

Flurescen Ink

Power:

220-24v

Applicable:

Shoe Upper, Vamp, Cloth

Control:

Computer

Packaging Details:

Wooden case

Highlight:

Shoe Upper Inkjet Line Drawing Machine

Double Head Inkjet Line Drawing Machine

Shoe Marking Machine for Shoe Upper

Product Description

Shoe Upper Inkjet Line Drawing Machine

Shoe Marking Machine for Shoe Upper / Vamp

Shoe Marking Machine - Fast, Accurate, and Easy to Use

Our Shoe Marking Machine is designed specifically for footwear factories to improve marking efficiency and reduce manual errors. It delivers precise positioning, high-speed marking, and consistent results on a wide variety of shoe materials, making it ideal for uppers, linings, insoles, outsoles, and pattern pieces.

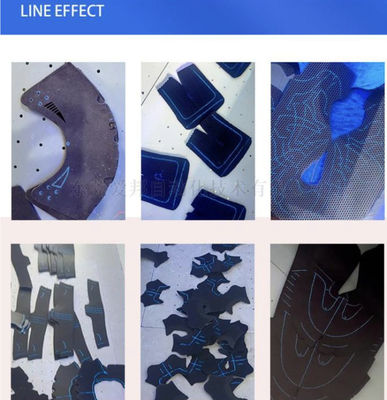

In the shoe industry, precise drawing of the stitching line of the shoe piece is an indispensable process. Traditional manual drawing not only requires a lot of labor, its quality also depends entirely on the proficiency of the workers.

Goldenlaser IB1209 automatic inkjet machine is specially designed for precise stitching line drawing of shoe materials. The equipment can perform automatic recognition of the type of cut pieces and precise positioning. It is high-speed, high-precision and assembly line processing flow. The whole machine is automatic, intelligent, and easy to learn.

The simplification of processes and the replacement of labor by machines are the way out for factories in the future. Therefore, goldenlaser launched a fully automatic inkjet stitching line drawing machine to help shoe factories save labor, improve efficiency, and save costs.

Product Parameters

Product name	smart shoe line marking machine
working area	1200mm*900mm
Ink type	flurescent ink
Format	PLT/DXF
Power	220-24v
Applicable	shoe upper, vamp, cloth, carseat cover
Control	computer

Key Features

High-Precision Laser or Ink Marking - Ensures clear, accurate marks for stitching lines, cutting guides, size codes, and production symbols.
Compatible With All Shoe Materials - Suitable for leather, synthetic leather, mesh fabrics, rubber, EVA, foam, and textile materials.
Fast & Efficient Production - Greatly reduces manual marking time and increases factory output.
User-Friendly Operation - Easy for new operators; supports automatic templates and repeat marking.
Supports Multiple Marking Modes - Dot marking, line marking, outlines, symbols, QR codes, and pattern alignment marks.
Long Service Life - Stable performance with low maintenance requirements.

Applications

Shoe upper marking
Pattern alignment marks
Cutting guide lines
Sewing and stitching guidelines
Size codes and production symbols
EVA & rubber component marking

Benefits for Shoe Factories

Improved accuracy and consistency
Reduced labor cost
Faster sample making and mass production
Fewer human errors
Better quality control

Automatic Layout Optimization System

First, we import the pattern files that require line drawing. The system automatically recognizes and matches the shoe upper contours, ensuring precise alignment.

Once imported, the system automatically generates separate pattern pieces for all shoe sizes. Here, we can see the list: size 35, size 36, size 37... and so on.

On the right, we have a selection panel displaying all imported pattern pieces. You can easily select any size to view its corresponding cut pieces.

Now, let's proceed with the operation! We select multiple sizes --35, 36, 37, and 38--to perform batch line drawing. You can also select just one size, such as size 35, or freely switch between sizes to adjust the drawing as needed.

With a simple and intuitive interface, you can easily complete the process with just a few clicks!

✅ Automatic Layout Optimization
✅ Automatic Size Recognition
✅ Integrated Auto Layout

Efficient, accurate, and easy to use--streamlining your workflow like never before!

Machine Features

Fully automatic assembly line operation, only need a worker to load the material (automatic loading device is optional).

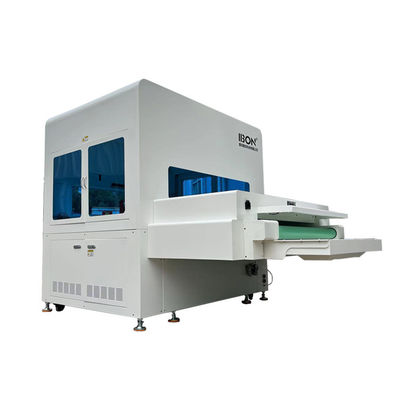

The whole machine consists of three stations: loading area, inkjet processing area, and drying and unloading area. The effective working range of each station is 1200mmx900mm.

The inkjet processing area is designed with a grid-shaped pneumatic press screen, which can press and flatten the cut pieces, and the camera recognition software has a grid elimination function.

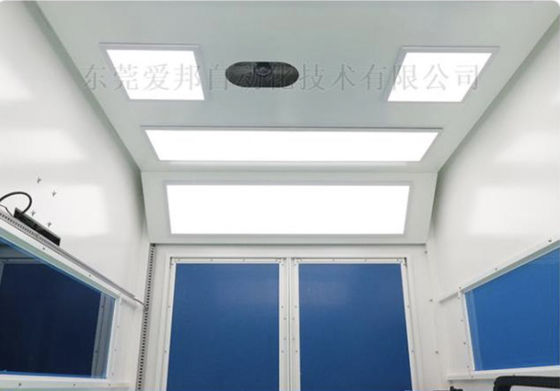

Equipped with high-precision industrial cameras, intelligent recognition of shoe uppers. Different types of uppers can be mixed and loaded, with software automatic recognition and precise positioning.

The inkjet head adopts X-Y gantry motion mode. Single head and double head are available. Imported servo driven module, fast speed, high precision and low failure rate.

High-frequency and high-speed inkjet head, with very slim spraying dots. Applicable to all kinds of disappearing ink and fluorescent ink.

Pneumatic inkjet head with pneumatic lifting function.

Collecting platform comes standard with drying system.

Application: Suitable for inkjet marking of various shoe upper materials.
