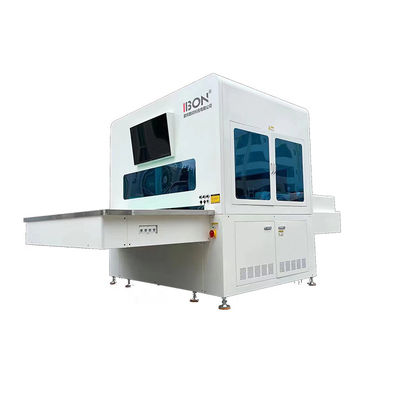

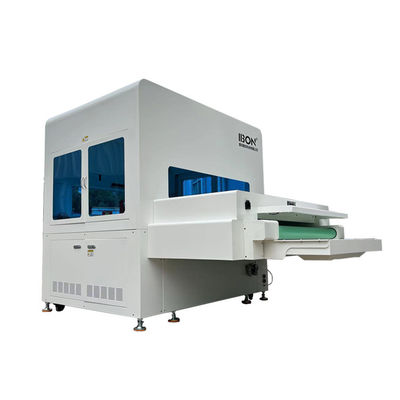

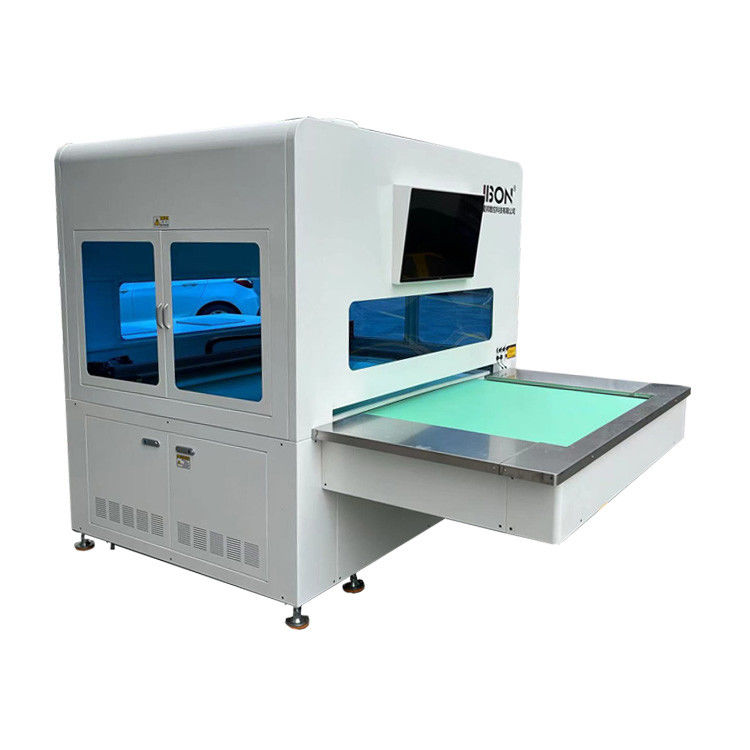

Shoe Upper Line Marking Machine Computer Control Cloth Marking Machine High Precision

Shoe Upper Cloth Line Position Marking Drawing Machine

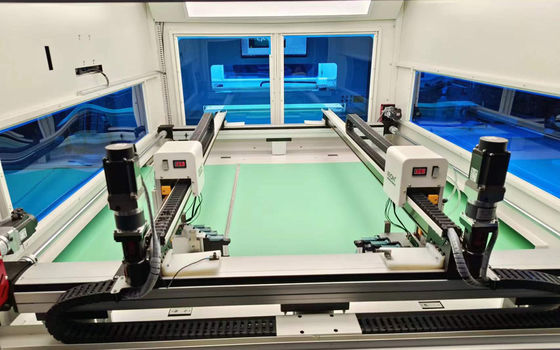

^{Shoe upper line marking machine is suitable for all kinds of shoes (PU, microfiber, leather, cloth, etc.) before sewing high-precision line drawing process;Automatic assembly line operation, replacing manual line drawing, screen printing and other traditional processes, high efficiency, environmental protection, energy saving;Mitsubishi servo motion module, fast speed, high precision, low failure rate;}

^{HP high-speed inkjet head, slim spray point, standard continuous ink supply system, saving consumables cost;
High-precision industrial camera with drawing, visual computing system automatic recognition, accurate positioning, automatic line drawing;Integrated inkjet printing mode, faster and more efficient than line drawing by track;Receiving platform standard drying system to ensure material quality;}

Features and advantages:

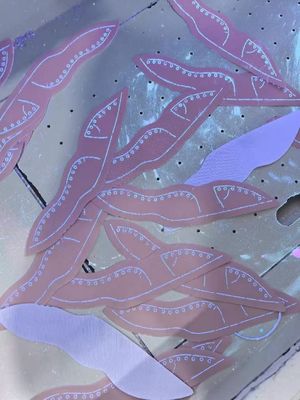

Camera visual recognition, intelligent positioning, one machine can replace 5-10 people Supports computer mapping and industrial camera visual positioning, easy to operate, easy to learn.The line drawing pass rate is ≥99%, and the line drawing accuracy reaches 0.02mm. High-definition visual positioning, line drawing accuracy up to 0.02mm, optional automatic loading and unloading It saves not only labor, but also 50% of ink and stencils. Uniform high-speed jetting can save 50% of ink, saving the cost and time of making stencils. The automatic line drawing machine is flexible and versatile, allowing line drawing on materials to be unrestricted Not limited by materials, multiple styles, different cutting pieces can achieve simultaneous line drawing Recognize the shape and direction of the material , accurately locate and draw the line automatically , and can recognize more than 20 different pieces at the same time for meeting the user's line drawing work. Adopt customized servo motion module, fast speed, high precision and low failure rate. Controlled by software activation, auto-location, and material movement system of servo motor Separately .

Application:

The shoe upper cloth line drawing machine is widely used in the production and manufacturing of various types of shoes, including sports shoes, leather shoes, casual shoes, etc. It can provide efficient and precise marking solutions for shoe factories and improve product quality and production efficiency.

^{After Sales Service :}

_{1. 12 months warranty for the whole machine. Technology support all life time.}

_{2. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, telephone, video online and so on, when you meet some problems of installation, using or adjusting.}

_{3. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments all sorts of tools and testing facility,we will also provide accomadation during training period.}

_{4. We can provide door to door service if needed.}
