IB1509 Intelligent Fabric Cutter with 1500 x 900mm Cutting Area and ±0.01mm Positioning Accuracy for Footwear Pattern Cutting

Name: IB1509 Intelligent Fabric Cutter with 1500 x 900mm Cutting Area and ±0.01mm Positioning Accuracy for Footwear Pattern Cutting
Brand: IBON Technology Co., Ltd.
SKU: IB1509
Price: 144,999.00 USD
Availability: InStock

Brand Name:	IBON
Model Number:	IB1509
MOQ:	1
Price:	Negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	300 sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

DongGuang,China

Product Name:

CNC Leather Cutter

Product Name:

Automible Interiors Cutting Machine

Control:

Automatic

Tooling:

Oscillation Knife,Punching Head

Cutting Area:

1500 X 900mm

Fix Way:

Vaccum Absorb

Power:

220-380V, 50Hz

Power Source:

Electric

Supported Files:

Plt,Dxf

Warranty:

3 Years

Positioning Accuracy:

±0.01mm

Motor:

Japan Mitsubishi

Position Way:

Real-Time Projection, Red-Light Positioning

Packaging Details:

Wooden Case

Highlight:

Intelligent Fabric Cutting System

Automatic Intelligent Cutting System

Footwear Fabric Cutting System

Product Description

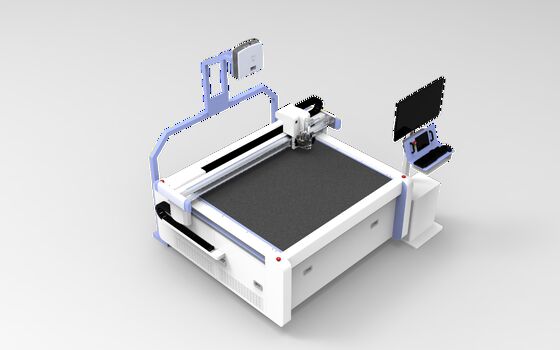

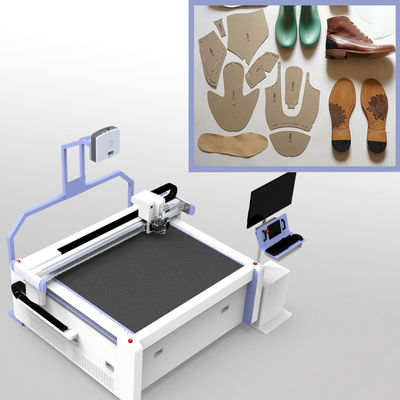

IB1509 Automatic Intelligent Cutting System for Footwear Fabric

Small-Size Sample Room CNC Cutting Machine

The IB1509 is a compact, high-precision intelligent cutting system designed specifically for footwear sample rooms and pattern departments. It enables fast, accurate cutting of shoe upper fabrics, synthetic leather, microfiber, knitted materials, lining fabrics, and prototype patterns without the need for molds. This machine helps shoe factories dramatically shorten sample development time and increase design accuracy while reducing labor costs.

Key Features

Small Footprint, Perfect for Sample Rooms

Compact 1509 size
Easy to install in design offices or sample workshops
Designed for small-batch cutting, pattern cutting, and prototyping

High-Precision CNC Cutting

±0.1 mm accuracy for pattern and fabric details
Ideal for cutting curves, small notches, marking points, and complex shapes
Ensures consistent sample quality for development teams

Fast Development Without Molds

No die mold cost
Immediate cutting after importing the pattern file
Perfect for quick sample changes and multiple versions of design adjustments

Intelligent Control System

Automatic tool recognition
Smart nesting to save fabric
Supports DXF, PLT, AI, and common pattern formats
Simple user interface — easy for sample room staff to use

Multi-Material Capability

Knitted uppers
Fly-knit materials
Mesh and textile fabrics
PU leather / microfiber
Sandwich mesh
Lining & reinforcement materials
Paper pattern & cardboard pattern cutting

Applications

Shoe factory sample room
R&D department
Pattern making / pattern cutting
Small batch cutting orders
Upper & lining prototype cutting
Designer proofing & fast sample development

Why Shoe Factories Choose IB1509

Faster prototype development
Lower sample cost (zero die mold)
More accurate pattern & shape consistency
Ideal for sports shoes / casual shoes / leather shoes / children's shoes
Boosts communication efficiency between designers and production

Product Parameters

Model	IB-ST-1509
Effective Work Size	1500mm ×900mm
Cutting Speed	1-1200mm/s
Cutting Thickness	0.1-10mm
Processing Material	Genuine leather, synthetic leather, PVC leather, insole board, TPU, footware, cow leather, sheep leather, pigskin leather, crocodile leather, etc.
Hold Method	Vacuum absorption
Machine Language	HP-GL / GP-GL
Interface	Ethernet port
Accuracy	Less than 0.1mm
Available Tools	Vibration knife, pen and holes punching
Vibration Knife	Electronic, driven by Swiss high frequency motor (18000 rotate/min)
Cutting Features	Possible to finish full-cut, kiss-cut and dotted-line cut interactively
Vacuum Power	9 KW, 380V-50Hz/220V-60Hz

Advanced Features

Dual working arms, cutting simultaneously and independently for accurate and smooth cutting quality
Auto nesting effect saves time, labor and materials, visible on the leather through the projector system
Widely used in footwear industry for various materials: knitting materials, fabric, PU, PVC mesh fabric
Vacuum partition follow-up adsorption system for continuous cutting
Meets production targets for multi-layer cutting, various orders, patterns and customized materials
Gantry form construction ensures stability and shock-absorption for accuracy and durability
Operation mode: HD projector positioning system + material-saving intelligent nesting software + 8-layer materials auto sending device + dual heads simultaneous cutting system

Certificate

Frequently Asked Questions

Can it be used for the fabric industry?

Yes, our digital cutting machines can be widely used in fabric, cloth, PU leather and other flexible material industries.

What's the maximum thickness your pneumatic cutting tool can cut?

Our digital cutting table can be installed with the pneumatic cutting tool, and this tool can cut up to 70 mm.

What work can this digital cutting machine handle?

The digital cutting machines can do the job of cutting, creasing and marking.

Do you have the manual for fabric cutting machines?

Yes, we can provide manual, CD software and video to help you operate the machine expertly.

If we don't know how to use the CNC cutting machine, can you teach us?

Yes, of course. We can offer you free training, and engineers available to service machinery training overseas if you would like to offer them business expenditure.

How about your guarantee period for the digital cutting table?

Twelve months for the whole machine.
