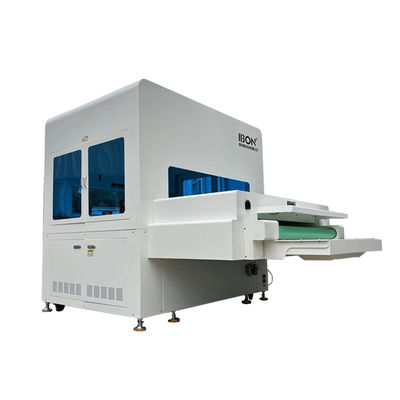

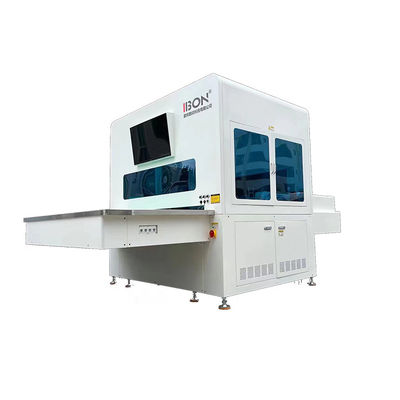

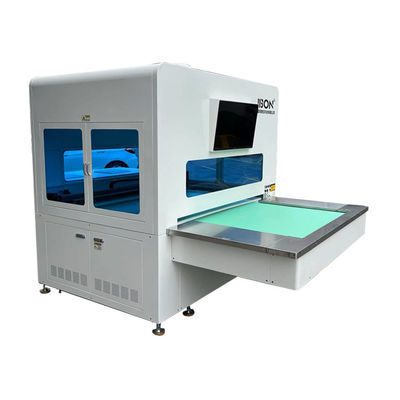

Automatic Shoe Upper Line Drawing Machine with 1200 x 900mm Working Area and UV Fluorescent Ink for Precise Inkjet Marking

Automatic Shoe Upper Line Drawing Machine with 1200 x 900mm Working Area and UV Fluorescent Ink for Precise Inkjet Marking

Brand Name:	IBON
Model Number:	IB1209
MOQ:	1
Payment Terms:	T/T,Western Union
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

DongGuan

Certification:

Product Name:

Digital Leather Printing Machine

Style Ways:

Printing Line For Shoe Upper

Working Area:

1200 X 900mm

Ink Type:

Flurescen Ink

Power:

220-24v

Applicable:

Shoe Upper, Vamp, Cloth

Control:

Computer

Packaging Details:

Wooden case

Highlight:

Shoe Upper Marking Machine

Shoe Upper Inkjet Marking Machine

Computer-Controlled Inkjet Marking Machine

Product Description

Automatic Shoe Upper Line Drawing Machine

Inkjet Marking Solution for Faster Stitching

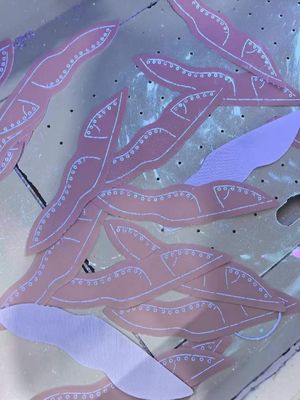

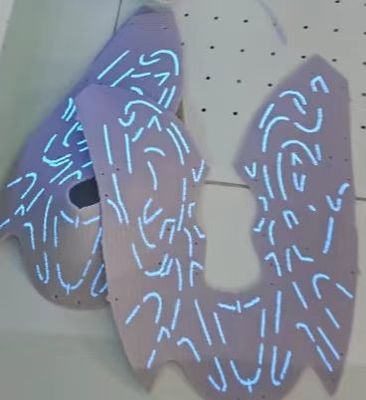

Boost your sewing accuracy and production efficiency with our automatic shoe upper line drawing machine. Using high-durability UV-visible ink, the system prints clean stitch-guiding lines on leather or textile uppers, helping workers stitch faster with fewer errors.

The software supports DXF, AI, PLT and other formats, enabling mold-free, fast changeovers. This inkjet marking solution is perfect for factories needing stable output, reduced labor dependence, and improved stitching consistency.

Key Features

Multi ink option
Automatic Size Recognition
Integrated Auto-layout
VisionScan system
Place multiple parts
Press materials device
Automatic line marking device
Automatic feeding materials system
Auto drying device with constant temperature

Product Parameters

Product name	Smart shoe line marking machine
Working area	1200mm * 900mm
Ink type	Fluorescent ink
Format	PLT/DXF
Power	220-24V
Applicable materials	Shoe upper, vamp, cloth, car seat cover
Control	Computer

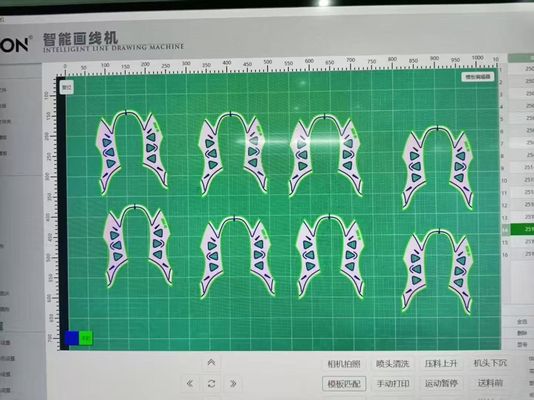

Automatic Layout Optimization System

First, we import the pattern files that require line drawing. The system automatically recognizes and matches the shoe upper contours, ensuring precise alignment.

Once imported, the system automatically generates separate pattern pieces for all shoe sizes including size 35, size 36, size 37, and more.

The selection panel displays all imported pattern pieces, allowing easy selection of any size to view its corresponding cut pieces.

Select multiple sizes (35, 36, 37, 38) for batch line drawing, or choose individual sizes as needed.

With a simple and intuitive interface, complete the process with just a few clicks!

Automatic Layout Optimization

Automatic Size Recognition

Integrated Auto Layout

Efficient, accurate, and easy to use—streamlining your workflow like never before!
