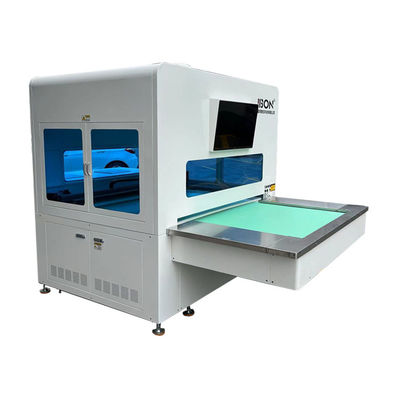

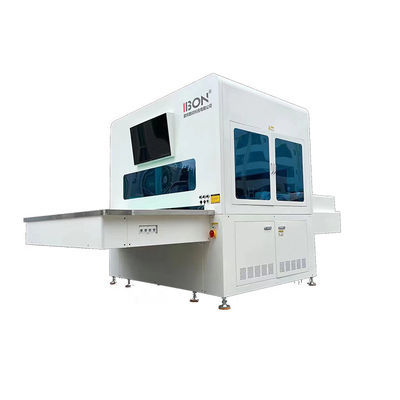

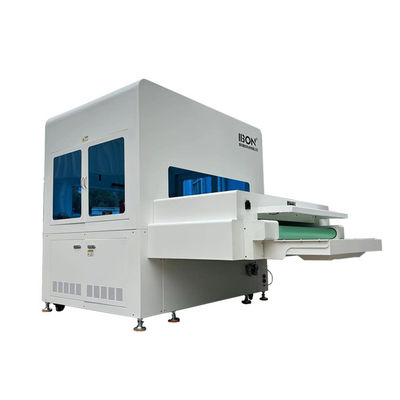

High Speed Full Automatic Intelligent Visual Recognition Shoe Marking Machine for Digital Inkjet Line Drawing on Footwear Uppers

High Speed Full Automatic Intelligent Visual Recognition Shoe Marking Machine for Digital Inkjet Line Drawing on Footwear Uppers

Brand Name:	IBON
Model Number:	IB1209
MOQ:	1
Payment Terms:	T/T,Western Union
Supply Ability:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

DongGuan

Certification:

Product Name:

Digital Leather Printing Machine

Style Ways:

Printing Line For Shoe Upper

Working Area:

1200 X 900mm

Ink Type:

Flurescen Ink

Power:

220-24v

Applicable:

Shoe Upper, Vamp, Cloth

Control:

Computer

Packaging Details:

Wooden case

Highlight:

Full Automatic Shoe Marking Machine

Visual Shoe Marking Machine

Intelligent Line Shoe Marking Machine

Product Description

High Speed Full Automatic Intelligent Line Marking Machine

Shoe Material Shoe Upper Visual Marking Machine

Advanced automated solution for precision line marking on various shoe materials including PU, microfiber, leather, and fabric uppers.

Key Features & Advantages

Suitable for high-precision line drawing process before sewing various shoe materials (PU, microfiber, leather, fabric, etc.)
Fully automatic assembly line operation replaces traditional manual drawing and screen printing processes
Mitsubishi servo motion module ensures fast speed, high accuracy, and low failure rate
HP high-speed inkjet head with fine spray points and continuous ink supply system
High precision industrial cameras with visual computing system for automatic recognition and accurate positioning
Integrated inkjet printing mode for faster and more efficient operation
Built-in drying system to ensure material quality
Continuous automatic ink supply system with dual pump configuration for maximum reliability
Supports multiple ink types including invisible, washable, and permanent visible inks

Technical Specifications

Product Name	Smart Shoe Line Marking Machine
Working Area	1200mm * 900mm
Ink Type	Fluorescent Ink
File Format	PLT/DXF
Power Supply	220-24V
Applications	Shoe Upper, Vamp, Cloth, Car Seat Cover
Control System	Computer Controlled

Product Gallery

Automated Operation Process

Our automatic layout optimization system streamlines the entire marking process:

Import pattern files requiring line drawing
Automatic recognition and matching of shoe upper contours
Automatic generation of separate pattern pieces for all sizes (35, 36, 37, etc.)
Easy selection of sizes via intuitive interface panel
Batch line drawing capability for multiple sizes simultaneously
Simple operation with minimal clicks required

Automatic Layout Optimization

Intelligent system automatically arranges patterns for maximum efficiency

Automatic Size Recognition

Automatically identifies and processes all standard shoe sizes

Integrated Auto Layout

Seamless integration of pattern recognition and marking processes

Industry Applications

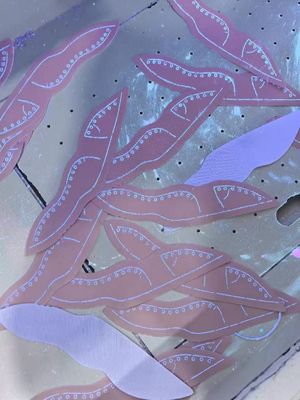

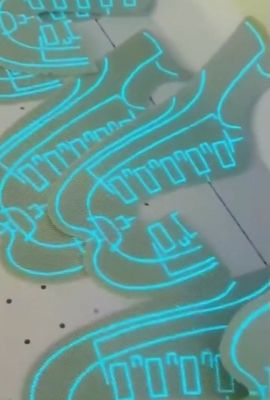

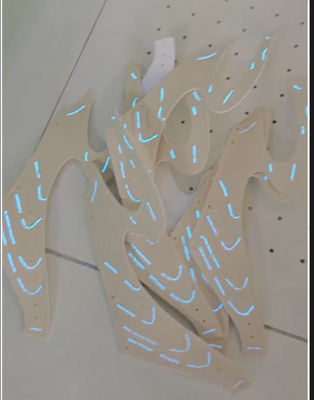

This footwear upper marking machine is widely used in sports shoes, sneakers, kids' shoes, safety footwear and dress shoes production. Its digital inkjet marking technology creates clear sewing lines, curve outlines, and position guides on different materials including PU leather, genuine leather, knitted mesh, canvas, and woven fabrics.

Factories benefit from faster sample development, accurate mass production control, and improved sewing quality—making it one of the most popular marking machines in China, Europe, Southeast Asia, and Middle Eastern footwear markets.
