Shoe Marking Machine
Created with Pixso.

Digital Leather Printing Machine with 1200 x 900mm Working Area, Computer Control, and Fluorescent Ink for Shoe Marking

Name

Digital Leather Printing Machine with 1200 x 900mm Working Area, Computer Control, and Fluorescent Ink for Shoe Marking

Brand Name: IBON
Model Number: IB1209
MOQ: 1
Payment Terms: T/T,Western Union
Supply Ability: 300 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
DongGuan
Certification:
CE
Product Name:
Digital Leather Printing Machine
Style Ways:
Printing Line For Shoe Upper
Working Area:
1200 X 900mm
Ink Type:
Flurescen Ink
Power:
220-24v
Applicable:
Shoe Upper, Vamp, Cloth
Control:
Computer
Packaging Details:
Wooden case
Highlight:

Shoe Upper Inkjet Line Drawing Machine

,

Double Head Inkjet Line Drawing Machine

,

Shoe Marking Machine for Shoe Upper

Product Description
Shoe Upper Inkjet Line Drawing Machine
Shoe Marking Machine for Shoe Upper / Vamp
Our Shoe Marking Machine is engineered specifically for footwear manufacturing facilities to enhance marking efficiency and eliminate manual errors. This advanced system delivers precise positioning, high-speed marking, and consistent results across diverse shoe materials, making it perfect for uppers, linings, insoles, outsoles, and pattern pieces.
Digital Leather Printing Machine with 1200 x 900mm Working Area, Computer Control, and Fluorescent Ink for Shoe Marking 0 Digital Leather Printing Machine with 1200 x 900mm Working Area, Computer Control, and Fluorescent Ink for Shoe Marking 1
In the footwear industry, accurate drawing of stitching lines on shoe components is an essential manufacturing process. Traditional manual marking not only requires substantial labor but also depends entirely on operator skill levels. The Goldenlaser IB1209 automatic inkjet machine is specifically designed for precise stitching line application on shoe materials. This equipment features automatic pattern recognition, precise positioning capabilities, high-speed operation, and assembly line processing workflow. The entire system is automated, intelligent, and easy to operate.
Process simplification and automation represent the future direction for manufacturing facilities. Goldenlaser's fully automatic inkjet stitching line drawing machine helps shoe factories reduce labor requirements, improve production efficiency, and lower operational costs.
Product Specifications
Product Name Smart Shoe Line Marking Machine
Working Area 1200mm * 900mm
Ink Type Fluorescent Ink
File Format PLT/DXF
Power Requirements 220-24V
Applications Shoe upper, vamp, cloth, car seat cover
Control System Computer Controlled
Key Features

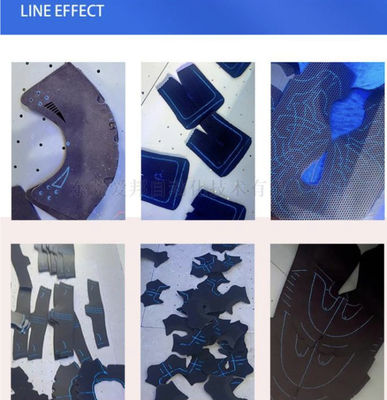

  • High-Precision Ink Marking - Ensures clear, accurate marks for stitching lines, cutting guides, size codes, and production symbols
  • Universal Material Compatibility - Suitable for leather, synthetic leather, mesh fabrics, rubber, EVA, foam, and textile materials
  • Fast & Efficient Production - Significantly reduces manual marking time and increases factory throughput
  • User-Friendly Operation - Easy for new operators to learn; supports automatic templates and repeat marking functions
  • Multiple Marking Modes - Supports dot marking, line marking, outlines, symbols, QR codes, and pattern alignment marks
  • Long Service Life - Stable performance with minimal maintenance requirements
Applications
  • Shoe upper marking and alignment
  • Pattern alignment marks and positioning
  • Cutting guide lines and templates
  • Sewing and stitching guidelines
  • Size codes and production symbols
  • EVA & rubber component marking
Factory Benefits
  • Enhanced marking accuracy and consistency
  • Reduced labor costs and dependency
  • Accelerated sample development and mass production
  • Minimized human errors and rework
  • Improved quality control standards
Automatic Layout Optimization System
Our advanced system begins by importing pattern files requiring line drawing. The software automatically recognizes and matches shoe upper contours, ensuring perfect alignment accuracy.
Once imported, the system automatically generates separate pattern pieces for all shoe sizes including size 35, size 36, size 37, and beyond. The selection panel displays all imported pattern pieces, allowing easy selection of any size to view corresponding cut pieces.
Operators can select multiple sizes simultaneously - such as 35, 36, 37, and 38 - to perform batch line drawing operations. Alternatively, individual sizes like size 35 can be selected independently, with seamless switching between sizes for drawing adjustments.
The simple and intuitive interface enables complete process execution with minimal clicks, streamlining workflow efficiency.
✅ Automatic Layout Optimization
✅ Automatic Size Recognition
✅ Integrated Auto Layout
Efficient, accurate, and easy to use - revolutionizing your manufacturing workflow like never before!
Machine Technical Features

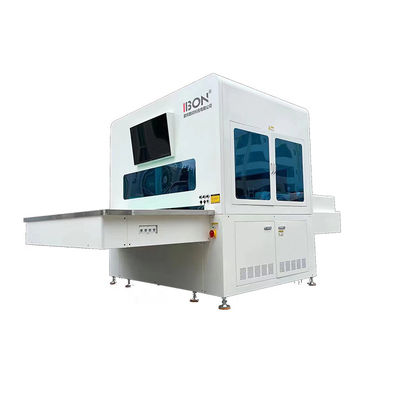

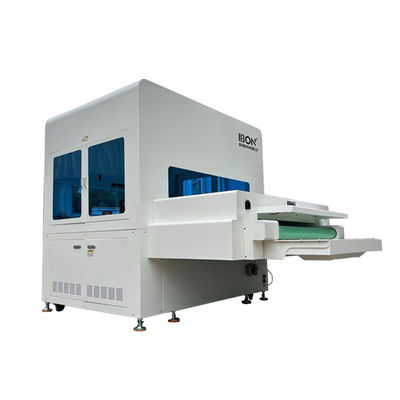

Fully automatic assembly line operation requires only one operator for material loading (automatic loading device available as optional equipment). The complete system comprises three stations: loading area, inkjet processing area, and drying/unloading area, each with an effective working range of 1200mm * 900mm.

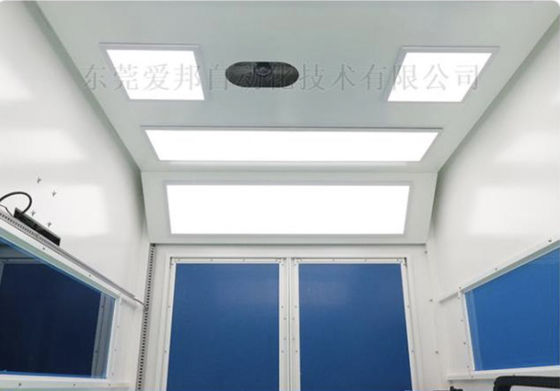

The inkjet processing area features a grid-shaped pneumatic press screen that flattens cut pieces, while camera recognition software includes grid elimination functionality. High-precision industrial cameras enable intelligent shoe upper recognition, allowing mixed loading of different upper types with software-based automatic recognition and precise positioning.
The inkjet head utilizes X-Y gantry motion technology with single or dual head configurations available. Imported servo-driven modules ensure fast operation, high precision, and low failure rates. High-frequency, high-speed inkjet heads produce extremely fine spraying dots and are compatible with various disappearing and fluorescent inks.
Pneumatic inkjet heads include pneumatic lifting functionality, while the collection platform comes standard with integrated drying systems. Suitable for inkjet marking applications across all shoe upper material types.
Packaging
Digital Leather Printing Machine with 1200 x 900mm Working Area, Computer Control, and Fluorescent Ink for Shoe Marking 2
