CNC corrugated box cutting machine with knife cutting and creasing tools. No die needed. High precision for carton & packaging boxes.

Name: CNC corrugated box cutting machine with knife cutting and creasing tools. No die needed. High precision for carton & packaging boxes.
Brand: IBON Technology Co., Ltd.
SKU: IB1625
Price: 144,999.00 USD
Availability: InStock

Brand Name:	IBON
Model Number:	IB1625
MOQ:	1
Payment Terms:	T/T
Supply Ability:	300set/month

Detail Information

Product Description

Detail Information

Place of Origin:

DongGuan, China

Certification:

Product Name:

CNC Cardboard Cutting Machine

Feeding Method:

Automatic Feeding Material

Airpressure:

0.75-0.85Mpa

Cutting Accuracy:

±0.1mm

Cutting Thickness:

0.1-30mm (depending On The Material)

Transmission Motor:

Japan Mitsubishi

Transmission Mode:

Linear Rail And Rack

Data Format:

PLT,DXF

Transmission Interface:

Ethernet ,USB

Fixed Mode:

Vacuum Absorb

Rated Voltage:

AC220V-380V,50HZ

Rated Power:

About 10KW

Packaging Details:

Wooden Case

Highlight:

Automatic feeding material CNC Cardboard Cutting Machine

±0.1mm Cutting accuracy Corrugated Box Cutting Machine

1600 × 2500 mm Working Area Carton Box CNC Cutter

Product Description

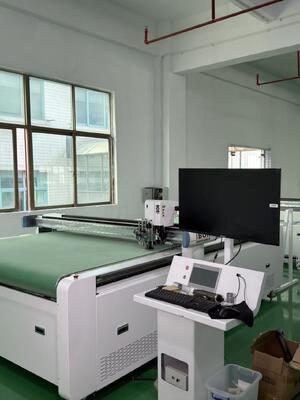

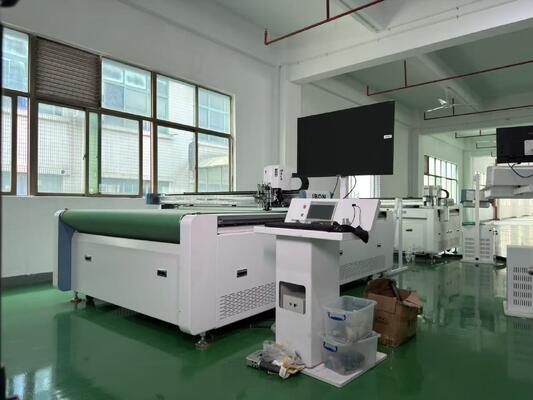

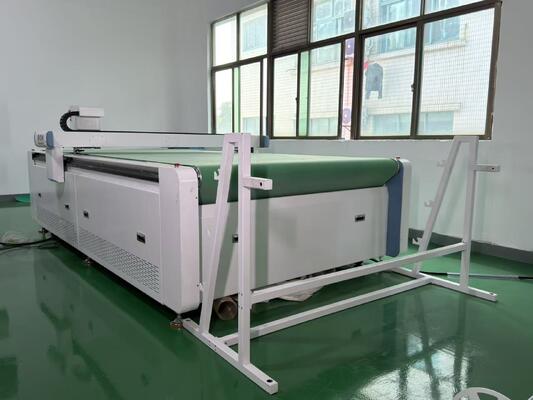

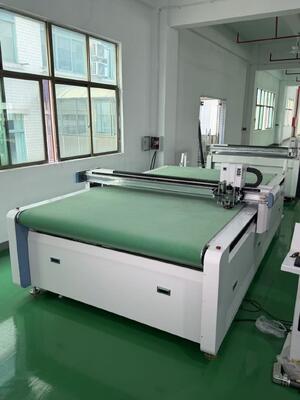

IB1625 Corrugated Box Cutting Machine | Carton Box CNC Cutter

The IB1625 corrugated box cutting machine is a professional carton box CNC cutter designed for digital cutting and creasing of cardboard, carton paper, and corrugated packaging boxes. It is widely used in packaging factories, printing houses, and custom box manufacturers.

Equipped with a dual tool holder system, the IB1625 integrates CNC knife cutting and creasing (folding) functions in one machine, allowing cutting and creasing to be completed in a single operation without changing tools.

CNC Knife Cutting & Creasing in One System

CNC knife cutting tool for precise cutting of corrugated board, carton paper, and cardboard
Creasing tool for accurate folding lines, ensuring perfect box forming
Two tool holders with two machine tools, specially configured for packaging box production

This configuration makes the carton box CNC cutter highly efficient for producing corrugated boxes, packaging cartons, display boxes, and customized packaging.

Technical Specifications

Model NO.	1625
Certification	CE, ISO 9001:2000
Condition	New
Control	Automatic
Application	Paper, Plastic, Leather, Fabric
Power Source	Electric
Layout	Vertical
Working Area	1600*2500mm
Method of Fixing Material	Vacuum Suction
Transmission	Rack
Driving	Servo
Transport Package	Wood Crate
Specification	1625
Trademark	IBON
Origin	DongGuan, China
HS Code	84411000
Production Capacity	300 Set/Month

Customizable Working Size

The standard working size of the IB1625 carton box CNC cutter is 1600 * 2500 mm, and customized machine sizes are available to meet different production requirements.

Whether you are producing corrugated packaging boxes, carton boxes, or cardboard displays, the IB1625 CNC corrugated box cutting machine provides a flexible, efficient, and cost-effective digital cutting solution.

The IB1625 is an ideal corrugated box cutting machine and carton box CNC cutter for manufacturers seeking high precision, fast setup, and zero die cost.

Tool System Introduction

Oscillating knife: to cut off or half cut the cardboard, corrugated cardboard, honeycomb cardboard, gray board, etc.

Creasing wheel: Creasing wheel tool used to press the marks for folding the carton, also can process easy tear off carton dotted line cutting.

V cut tool: for slotting and bevel cutting on honeycomb cardboard or corrugated cardboard.

CCD Camera: for read patterns on the printed cardboard, and then machine cut along the edge.

Pneumatic knife tool: for cutting thick or hard cardboard, foam board, etc. More powerful.
